Gridfinity battery dispenser bin for AA, AAA, 18650, 21700

Gives your spare batteries a home on the shelf instead of rolling around a drawer. Cells sit in a sloped lane and come forward one at a time, with a scoop at the front to grab them. Change the lane count and ramp to suit the cell you stock.

1 part · 118 g · 84 × 168 × 55 mm

by Loftsmith Workshop

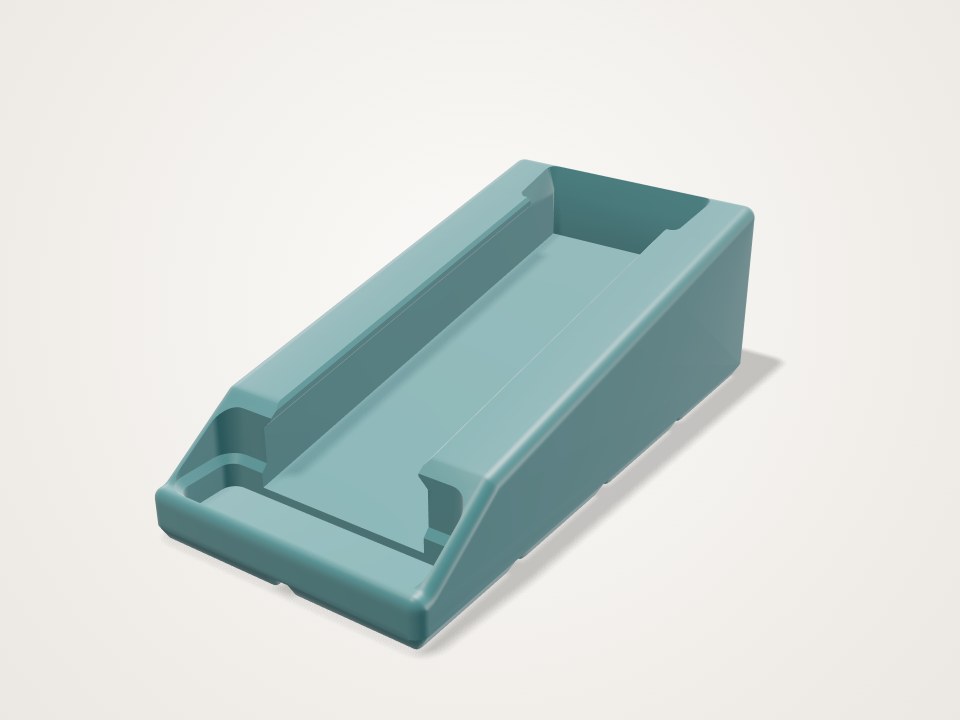

Teal Gridfinity bin with a sloped lane, raised side walls and a scooped front for taking out cells
Loading the 3D view
Loading the 3D view
No adjustable sizes

Ask for the sizes you want to tweak, e.g. “make the width adjustable”.

Change it in the Studio

Parts

  • dispenser-bin · PLA · As modelled: Gridfinity feet down on the bed, scoop at the front. No supports (0.8% overhang at defaults).

    PLA because it is a stiff indoor organiser with no heat or flex needs. The ramp under the lane is solid and is printed with normal infill. At defaults it is 83.5 x 167.5 x 55.4 mm, about 120 g and 2 h 45 min at 2 walls / 15% infill.

Print settings

Layer height
0.2 mm (0.16 mm gives a smoother ramp)
Walls
2
Infill
15%
Supports
None
Notes
At defaults: about 120 g and 2 h 45 min with 2 walls and 15% infill. With 3 walls and 15% infill it is about 145 g and 3 h 20 min. Print feet down. The rail undersides are 45 degree chamfers and the funnel and scoop mouths are chamfered, so nothing needs support.

Hardware

  • 32 × 6 x 2 mm round magnets (optional) · Only with the Magnet holes toggle on. 4 per grid square, so 32 for the default 2 x 4 bin. Holes are 6.5 mm wide and 2.4 mm deep in the bottom of each foot; press-fit or use a drop of glue.

Assembly

  1. Print the bin feet down with no supports.
  2. Optional: press 6 x 2 mm magnets into the holes under each foot if you turned on Magnet holes.
  3. Drop the bin into a Gridfinity baseplate with the scoop facing you.
  4. Load cells one at a time into the funnel at the back, lying sideways. Each one rolls down under the rails and joins the queue.
  5. To take a cell, pinch the front one by its two ends using the finger wells and lift it out. The next cell rolls into the scoop.

Good to know

  • Checked in the Loftsmith engine only, not printed. Whether cells roll smoothly depends on the ramp's layer lines. The ramp check assumes a rolling resistance of 0.05. If cells stall, raise the Ramp angle slider toward 15 degrees.
  • Cell sizes are the nominal maximums: AA 14.5 x 50.5 mm, AAA 10.5 x 44.5 mm, 18650 18.6 x 65.5 mm, 21700 21.4 x 70.5 mm. Protected 18650 or 21700 cells with a built-in circuit board are usually several millimetres longer and will not fit, even at the 0.8 mm maximum end clearance.
  • Coin cells (CR2032) are not supported; they need a different, vertical-stack design.
  • Cells come out oldest first only if you load them through the back funnel. The rails keep them in one row, so the bin holds a fixed number: 10 AA at the default 2 x 4 size.
  • The bin height follows the ramp and is not always a whole Gridfinity height unit (the default is 56 mm, 8 units). There is no stacking lip on top.
  • The ramp is solid, so it uses more filament than a hollow Gridfinity bin of the same size. The largest settings need a 256 mm bed: 21700 with two lanes is 209.5 mm wide, and depth 5 is 209.5 mm long.
