Triangle Dog Bowl, neon pink, SKY

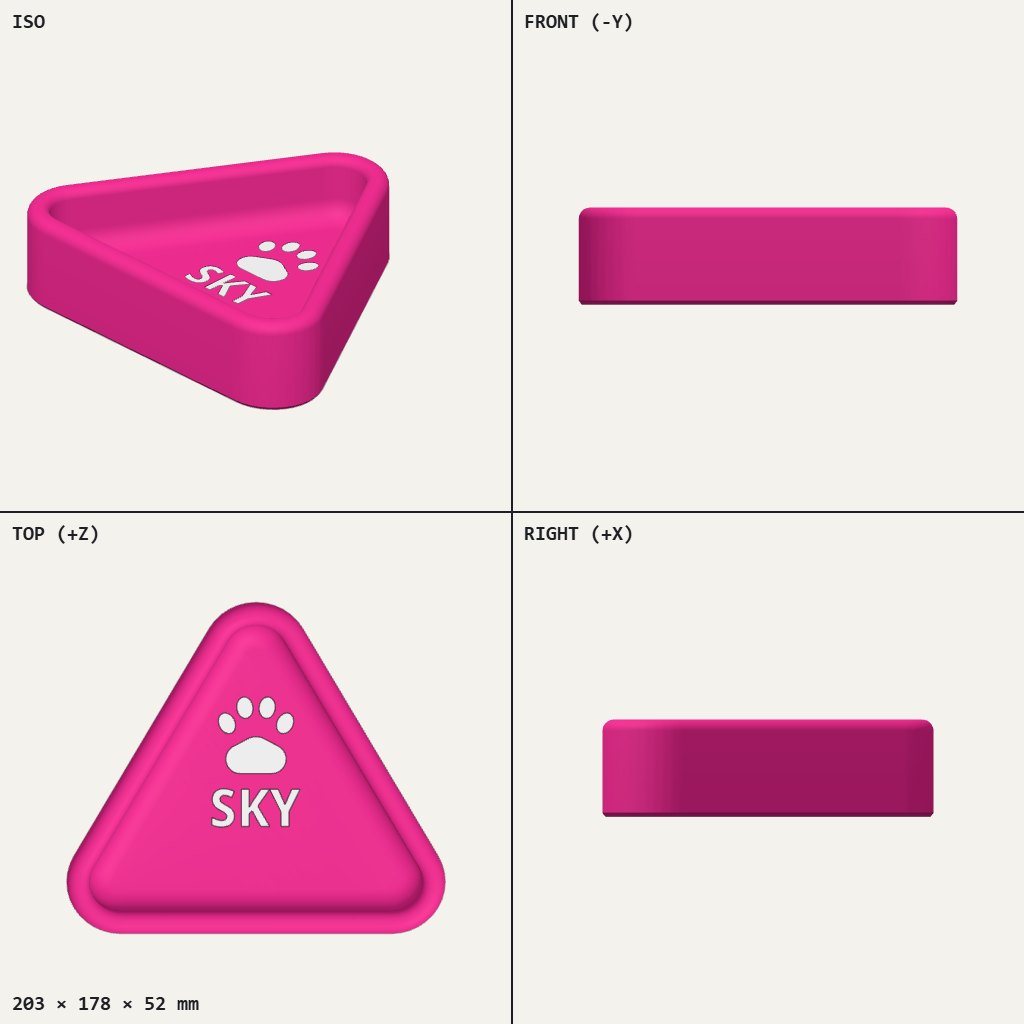

A food or water bowl with your dog's name on it, so there's no question whose dinner this is. The triangle has soft rounded corners and a raised paw print above the name. Change the width and depth to suit a small dog or a big one.
1 part · 197 g · 203 × 178 × 52 mm
Loading the 3D view
Loading the 3D view
No adjustable sizes
Ask for the sizes you want to tweak, e.g. “make the width adjustable”.
How to print it
Parts
- paw bowl · PETG · Upright, flat bottom on the bed, bowl opening on top
One piece, no supports. The hollow pockets are sealed inside.
Print settings
- Layer height
- 0.2 mm (0.24 mm also works and saves a few hours)
- Walls
- 3
- Infill
- 15% gyroid
- Supports
- None
- Notes
- Use a textured or glue-coated PEI plate for PETG. Add 5 top layers so the bowl floor is watertight, and have a full 1 kg spool ready.
Assembly
- Nothing to assemble: print it and wash the bowl before first use.
Good to know
- Printed layers have tiny gaps where food and germs can collect, so use a food-safe PETG and hand-wash it, or put a small steel insert bowl in for daily use.
- It's big: about 940 g of filament and roughly 20 hours. Fill a cup of water on the first use to check the bowl doesn't seep before you trust it on the floor.
- A 6 in tall bowl suits medium and large dogs. If it's too tall for yours, lower the Height slider on Adjust.
