Water tower card holder

A little water tower that keeps a card or photo standing up on your shelf. The tank sits on a lattice of angled legs, and a slim slot in the base holds the card with a slight lean back. Change the slot width and the height to suit what you're displaying.

1 part · 132 g · 116 × 126 × 151 mm

by Shipley3DEarly member

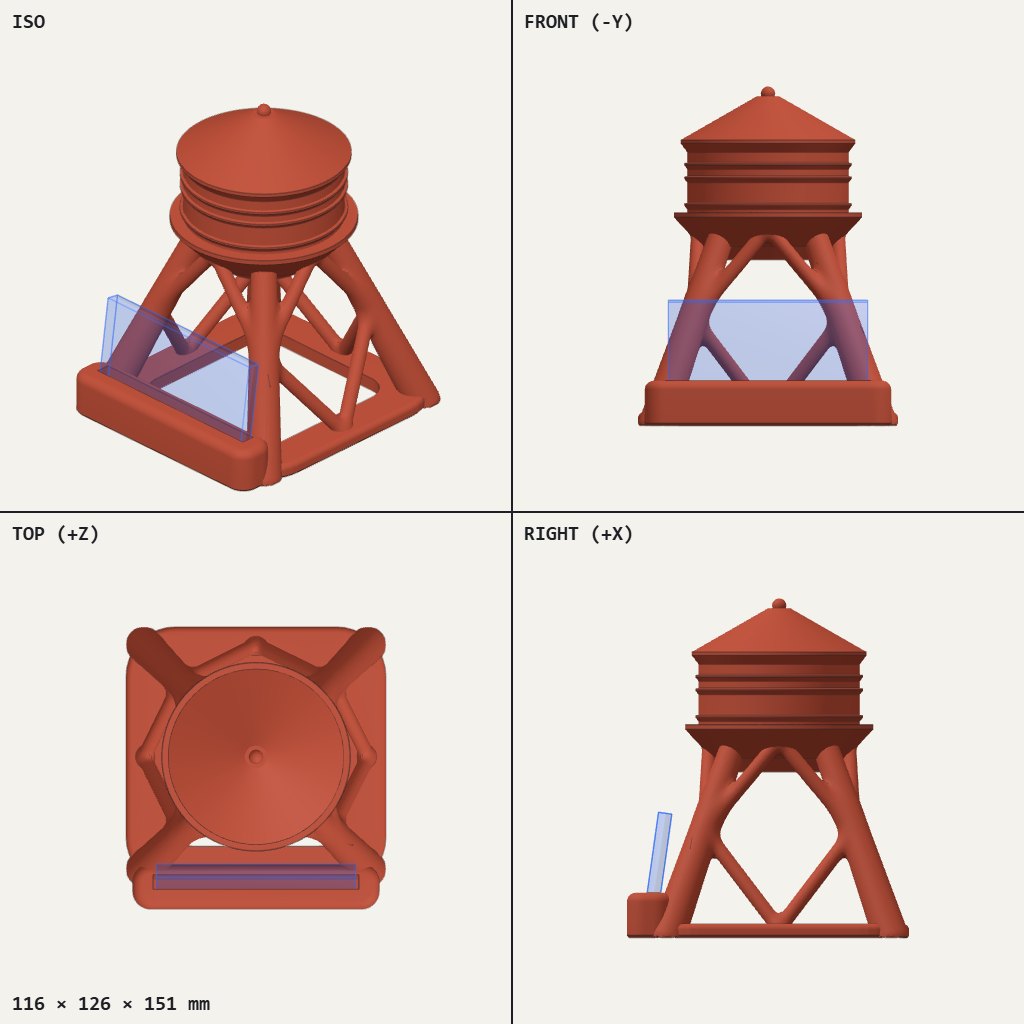

Rust-red water tower on lattice legs with a thin card slot along the front of its base
Loading the 3D view
Loading the 3D view
No adjustable sizes

Ask for the sizes you want to tweak, e.g. “make the width adjustable”.

Change it in the Studio

Parts

  • water-tower · PLA · Upright, base flat on the bed

    No supports needed

Print settings

Layer height
0.16 mm (smoother roof and hoops)
Walls
3
Infill
15%
Supports
None
Notes
Slow outer walls a little for the thin braces; a brim isn't needed.

Good to know

  • The legs and braces are fairly slim for their height. They hold each other up as a frame, so they should print fine, but keep an eye on the top half of the legs while it prints.
  • The card slot is sized for normal 0.3 mm cards. If yours are thicker, open it up with the Card slot width slider on Adjust.
