Shower-Bar Bottle Caddy

Gets the shampoo, conditioner and body wash off the tub edge and up onto the shower bar. Four square cells hold the bottles upright, and slots in the walls let water run straight out. Set the bar width and bottle width to match yours.

1 part · 173 g · 170 × 204 × 65 mm

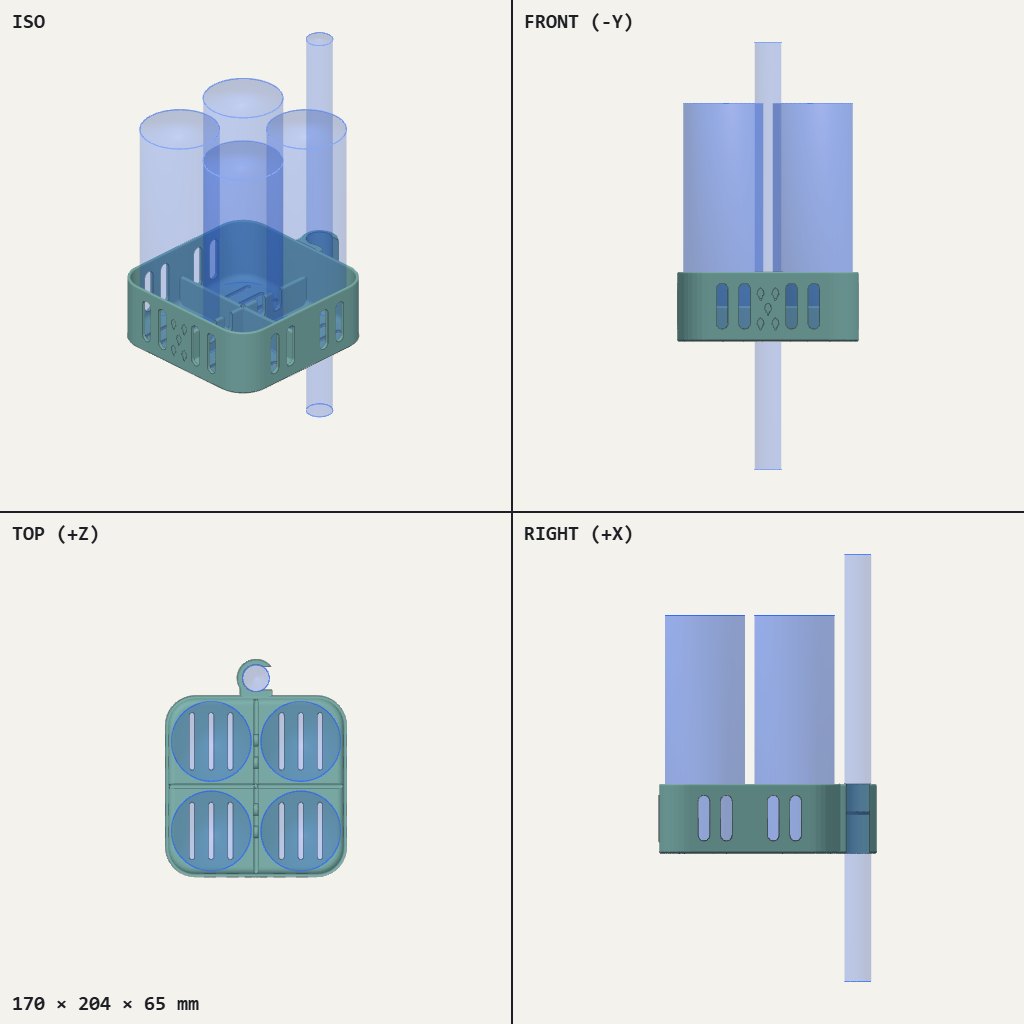

Square four-cell basket with slotted walls and a round clip loop at one edge, shown holding four bottles
Loading the 3D view
Loading the 3D view
No adjustable sizes

Ask for the sizes you want to tweak, e.g. “make the width adjustable”.

Change it in the Studio

Parts

  • caddy · PETG · Floor down on the bed; no supports

    The leaves are shallow recesses in a vertical wall, so their tiny tops print fine without support.

Print settings

Layer height
0.2 mm
Walls
3
Infill
15%
Supports
none
Notes
Dry PETG; light retraction keeps the leaf edges crisp.

Assembly

  1. Slide the clip onto the shower bar from the side until it snaps on.
  2. Drop the bottles into their four bays.

Good to know

  • Only 5 whole leaves fit between the windows at this size. If you'd like more, I can shrink the leaves or cover the side walls too.
  • Two things from before are still open: the bar clip works harder than I'd like at a full 4 kg, and 75 mm bottles just touch the inside corners. Start with lighter or slightly smaller bottles, or ask me to strengthen the clip and widen the bays.
