Wall spool holder with self-centring cones

Gets a filament spool off the desk and onto the wall, where it can turn freely as you print. A wall plate with two screw holes holds the arm, and a round knurled knob on the end locks the spool in place. Set your spool's width and hole size to fit.

5 parts · 111 g · 147 × 79 × 141 mm

by Loftsmith Workshop

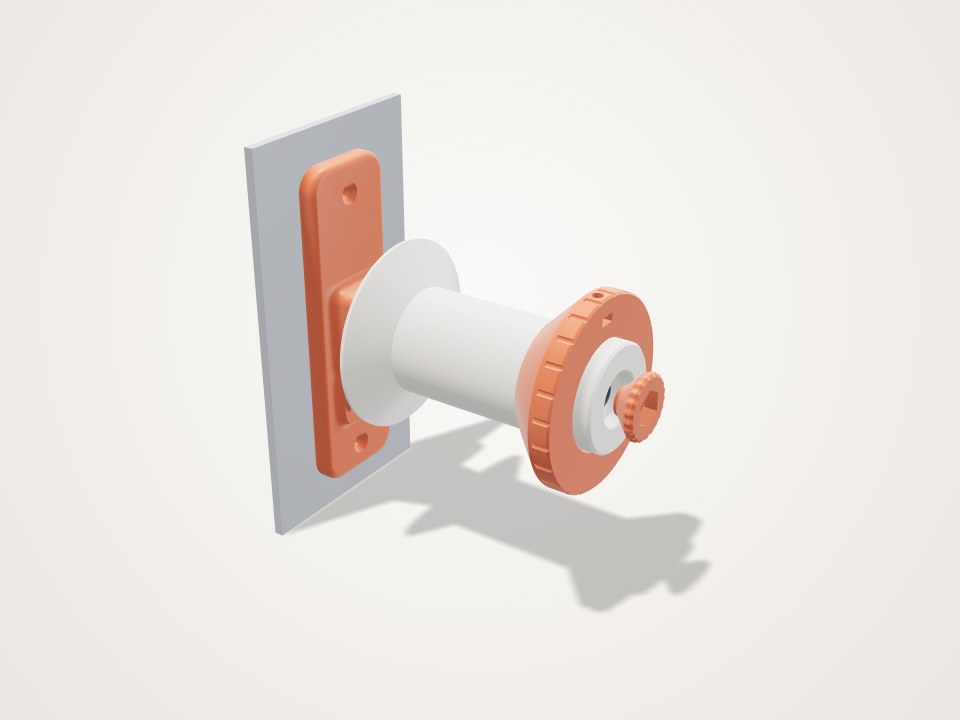

Wall plate with a horizontal arm holding a white spool, an orange knurled ring and knob on the end
Loading the 3D view
Loading the 3D view
No adjustable sizes

Ask for the sizes you want to tweak, e.g. “make the width adjustable”.

Change it in the Studio

Parts

  • bracket · PLA · Back face (flat wall side) down

    Slide the M8 nut into the slot in the side of the arm.

  • hub · PLA · Back cone end down

    Press a 608 into each end until it stops on the cone ledge.

  • front-cone · PLA · Grip band down

    Push an M4 nut into the slot in the front face, then thread the thumb screw in from the outside.

  • spacer · PLA · Lying on its flat side

    Rounded ends press only on the bearings' inner rings.

  • hub-cap · PLA · Grip face down (hex pocket on the bed)

    Press the M8 bolt head into the pocket until it sits on the cone seat.

Print settings

Layer height
0.2 mm
Walls
3
Infill
15%
Supports
None
Notes
Standard PLA profile. If the bearings are too tight or loose, nudge the Bearing seat extra slider (0-0.4 mm) on Adjust and reprint the hub.

Hardware

  • 2 × 608 bearing (8 x 22 x 7 mm) · Standard skateboard bearings.
  • M8 x 130 mm hex head bolt · Length at default sliders; the build log names the right length if you change spool width or hole size.
  • M8 hex nut · Captive in the bracket's side slot.
  • M4 x 20 mm thumb screw (or any M4 screw) · Length at default sliders (12-30 mm depending on cone size; see the build log).
  • M4 hex nut · Captive in the front cone.
  • 2 × Countersunk wood screw, about 4 x 40 mm · Use wall plugs suited to your wall.

Assembly

  1. Slide the M8 nut into the slot in the side of the bracket's arm.
  2. Screw the bracket to the wall with the two countersunk screws.
  3. Press one 608 into each end of the hub until each stops on its ledge, with the spacer between them.
  4. Push the M8 bolt head into the knob until it sits on its seat, then turn the knob until the hub is snug but still spins freely.
  5. Fit the M4 nut and thumb screw into the front cone.
  6. Slide the spool on until it sits against the back cone.
  7. Slide the front cone over the knob into the spool's hole until the spool feels centred, then tighten the thumb screw.

Good to know

  • Slider ends were verified by working through the script's checks, not by a separate build at each end, so drag any slider on Adjust to see it rebuild and confirm.
  • The bearing press fit and how well the thumb screw holds the front cone are untested; try the hub and front cone with a real spool first.
