Toilet-room drawer tower

A stack of drawers for the small things a bathroom collects, so they stop living on the cistern. Each drawer has a slot for a finger pull, and the sides have rows of vents. Change how many drawers you stack and how deep each one is.

8 parts · 2280 g · 200 × 200 × 120 mm

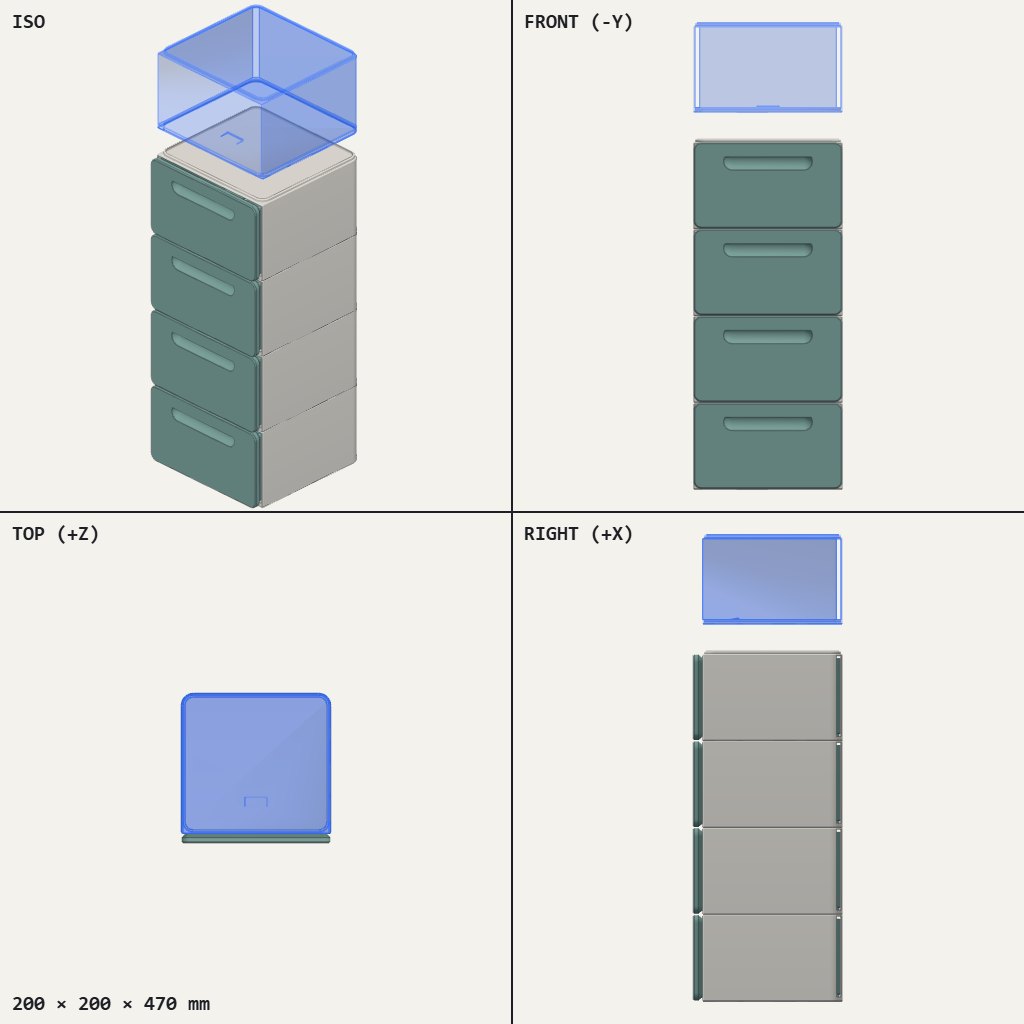

Tall stack of four green drawers with finger slots, grey vented sides and a lid-like top tray
Loading the 3D view
Loading the 3D view
No adjustable sizes

Ask for the sizes you want to tweak, e.g. “make the width adjustable”.

Change it in the Studio

Parts

  • shell ×4 · PLA · Standing on its back, no supports
  • drawer ×4 · PLA · Standing on its back

    The report still flags some overhang, so check the slicer preview and add supports if needed.

Print settings

Layer height
0.2 mm
Walls
2
Infill
15%
Supports
Check the drawer in the slicer preview

Good to know

  • The drawer slide fit (0.5 mm per side) and the stop bump are untested, so print one module first.
  • The motion and assembly checks hit the report's time budget and were only partly verified.
