Desk-edge cable clip

Keeps a charging cable from sliding off the back of your desk. It hooks over the edge like a long clip and a small round loop at the end holds the cable in place. Change the desk thickness and the cable size to fit your own setup.

1 part · 5 g · 48 × 15 × 37 mm

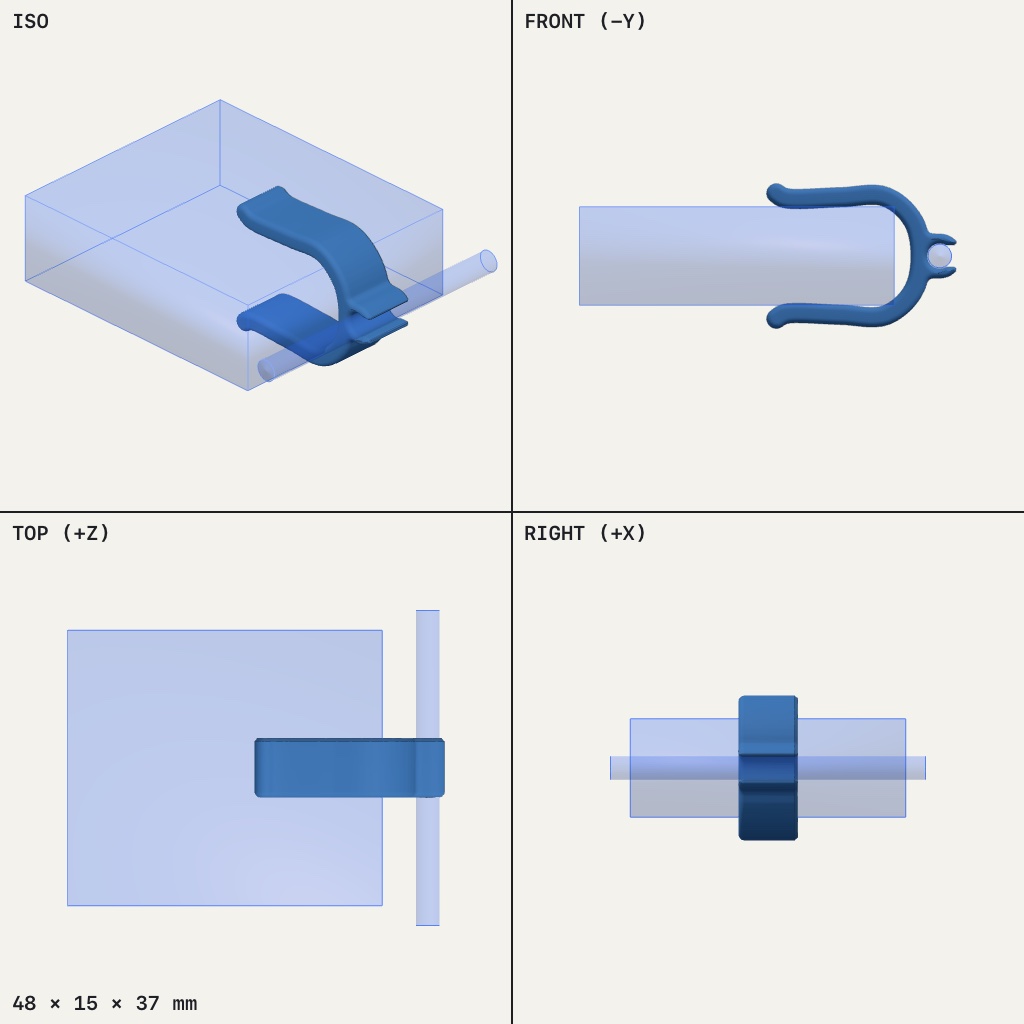

Blue U-shaped clip hooked over a flat desk edge with a small round loop holding a thin cable
Loading the 3D view
Loading the 3D view
No adjustable sizes

Ask for the sizes you want to tweak, e.g. “make the width adjustable”.

Change it in the Studio

Parts

  • clip · PLA · Lying on its side, flat face down

    Print as many as you need along the desk

Print settings

Layer height
0.2 mm
Walls
3
Infill
15%
Supports
None
Notes
Printing it on its side makes the C-bend strong.

Assembly

  1. Push the clip straight onto the desk edge. The jaws spring open a little and grip.
  2. Press the cable into the front cradle until it clicks, or slide it in from one end.

Good to know

  • The clip overlaps the desk in the model on purpose: the jaw tips are 0.5 mm narrower than the desk, and that squeeze is what holds it on.
  • I set it for a 25 mm desk, so measure yours first and set the Desk thickness slider. If the clip feels loose or too tight, change the Grip squeeze slider.
  • The click-in fit and the grip strength haven't been tested in real life. PLA can soften in a hot car or in direct sun.
