XIAO LoRa node case, mil-spec

A small case that keeps a XIAO LoRa node together out on a shelf, a fence post or a windowsill. The orange lid sits on a dark base, with a wifi-style mark and a little drip icon moulded in. Change the stack height and the antenna room to fit your own board.

2 parts · 13 g · 54 × 30 × 21 mm

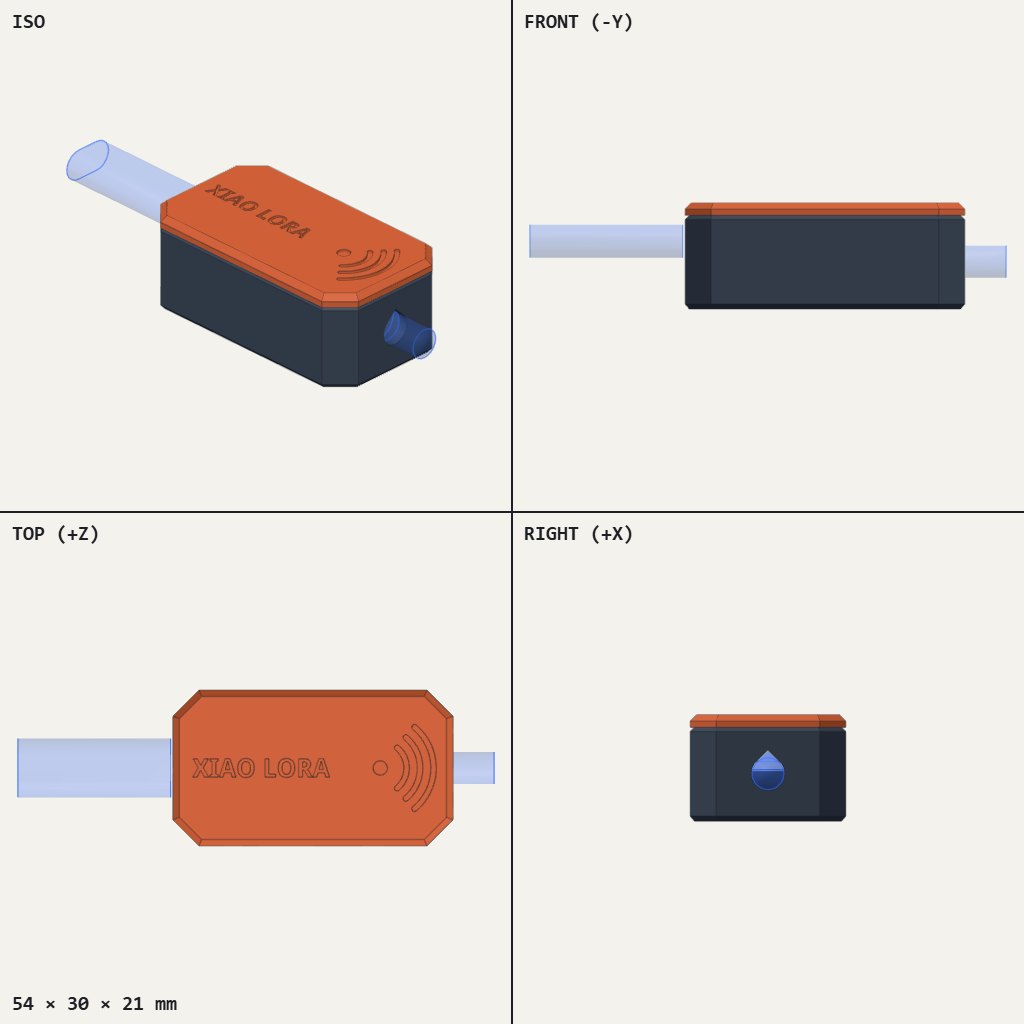

Dark rectangular case with an orange lid, a signal mark on top and a short tube sticking out each end
Loading the 3D view
Loading the 3D view
No adjustable sizes

Ask for the sizes you want to tweak, e.g. “make the width adjustable”.

Change it in the Studio

Parts

  • base · PLA · Upright, open side up
  • lid · PLA · Top face down

    The engraved lettering is only 0.7 mm deep, so print it with a 0.2 mm layer height or finer.

Print settings

Layer height
0.16-0.2 mm
Walls
3
Infill
15%
Supports
none

Good to know

  • The board stack height (12 mm) and USB-C port height are my estimates. Adjust the Board stack height and USB-C centre above board bottom sliders on Adjust, and check against your real boards.
  • The snap tabs need to flex a little, and the preview can't show that. If the lid is too tight or too loose, tweak it on a first print.
  • The report flags thin ledges on the lid. Those are the engraved lettering and signal mark, which I left in on purpose.
