Automotive lens reconstruction

A long, slim oval lens cover for a car light that's cracked or gone missing. It has a gentle dome on top and a fine groove running just inside the edge, where a seal or mating part could sit. Change the rim height and wall thickness to match your light.

1 part · 16 g · 170 × 45 × 16 mm

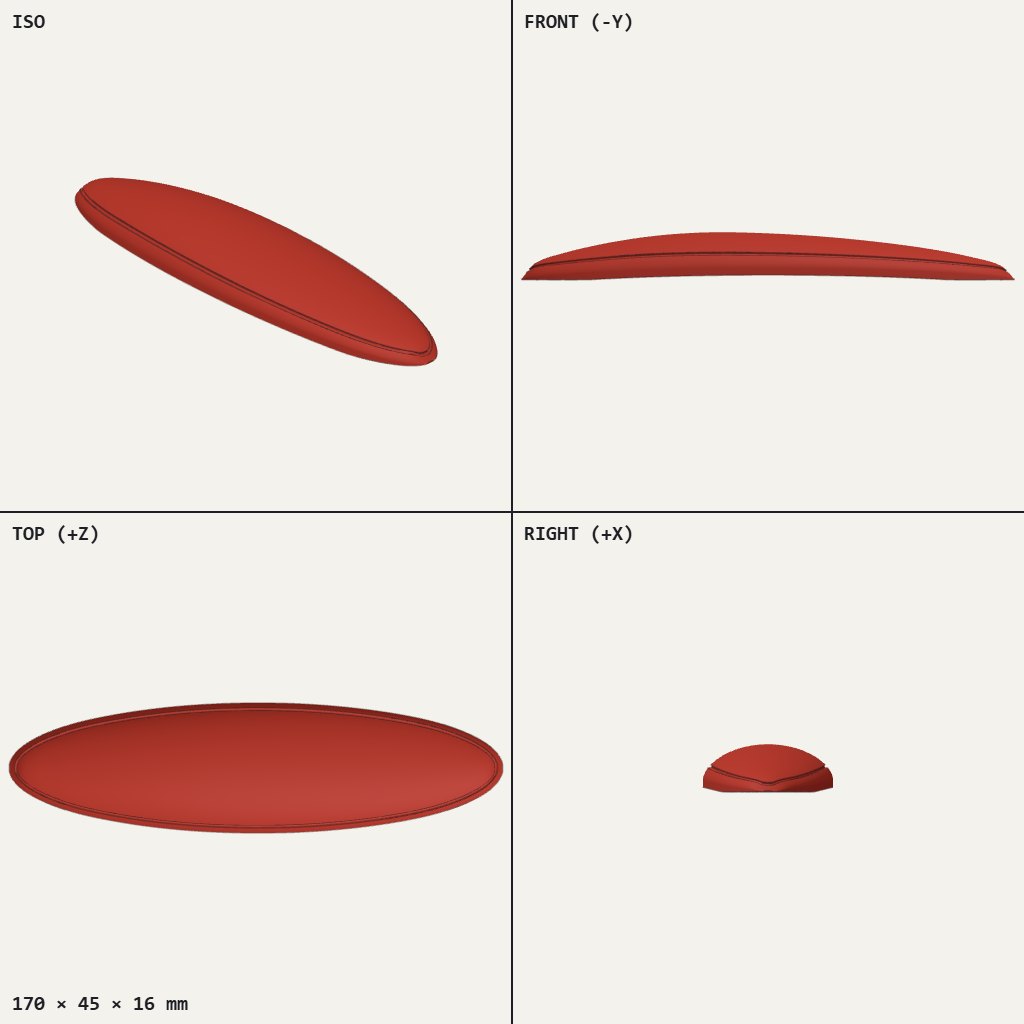

Long, narrow red oval lens with a shallow dome and a thin groove just inside the edge
Loading the 3D view
Loading the 3D view
No adjustable sizes

Ask for the sizes you want to tweak, e.g. “make the width adjustable”.

Change it in the Studio

Parts

  • lens · PLA · Convex face up, rim on the bed; the concave rear needs tree supports.

    Only a thin rim touches the bed, so use a brim.

Print settings

Layer height
0.2 mm
Walls
3
Infill
15%
Supports
Tree supports under the concave rear, plus a brim

Good to know

  • Values past X=+30 are my smooth continuation, because your table was cut off. Rim height, side-to-side fullness and channel position are guesses, each on a slider on the Adjust tab.
  • A thin curved shell can't print without support on one face. Plan on supports under the rear and a brim, roughly 12 g extra.
