72T 24DP gear, 1" keyed bore

A big spur gear for when you need to step a motor's speed down or share a shaft's turning with something else. It has a round hub with a keyway to lock onto a 1" shaft, and six round cutouts in the web. Tweak the bore and keyway clearance to get the fit you like.

1 part · 17 g · 78 × 78 × 10 mm

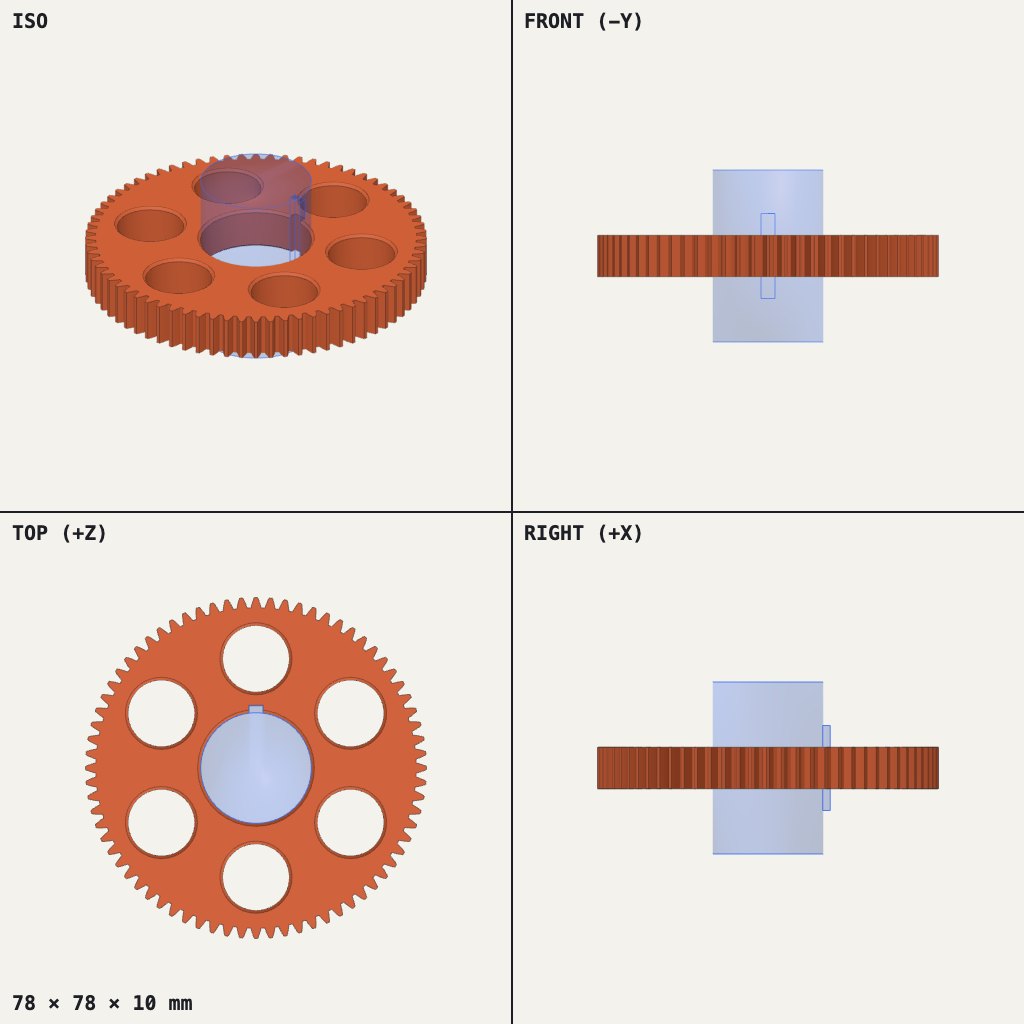

Round orange spur gear with six round holes around a central hub with a keyway
Loading the 3D view
Loading the 3D view
No adjustable sizes

Ask for the sizes you want to tweak, e.g. “make the width adjustable”.

Change it in the Studio

Parts

  • gear · PLA · Flat on either face

    No supports needed

Print settings

Layer height
0.16 mm (finer teeth)
Walls
4
Infill
25%
Supports
none
Notes
4 walls make the teeth and keyway walls basically solid.

Hardware

  • 1/8" square key · At least 3/8" long

Assembly

  1. Slide the gear onto the 1" shaft with the keyway lined up with the key seat.
  2. Tap in the 1/8" key. Hold the gear in place along the shaft with a set collar or a shoulder.

Good to know

  • The design check flags thin ledges on the teeth. Those are just the flat tops of the teeth, which a 24-pitch gear needs, so they're not a problem.
  • PLA teeth are good for light loads, up to about 1.5 N·m at 3/8" thick. Sliders on the Adjust tab change the fit: if the shaft or key is too tight or too loose, change Bore clearance or Keyway clearance. If the gear binds against its mate, raise Backlash.
