ESP32-POE-ISO case, USB-C side selectable

A small case that keeps an ESP32-POE-ISO board tidy and out of the dust. The lid has rows of vent slots, there are four screw posts at the corners, and you pick which side the USB-C opening sits on. Change the board length and width to match yours.

2 parts · 43 g · 106 × 50 × 31 mm

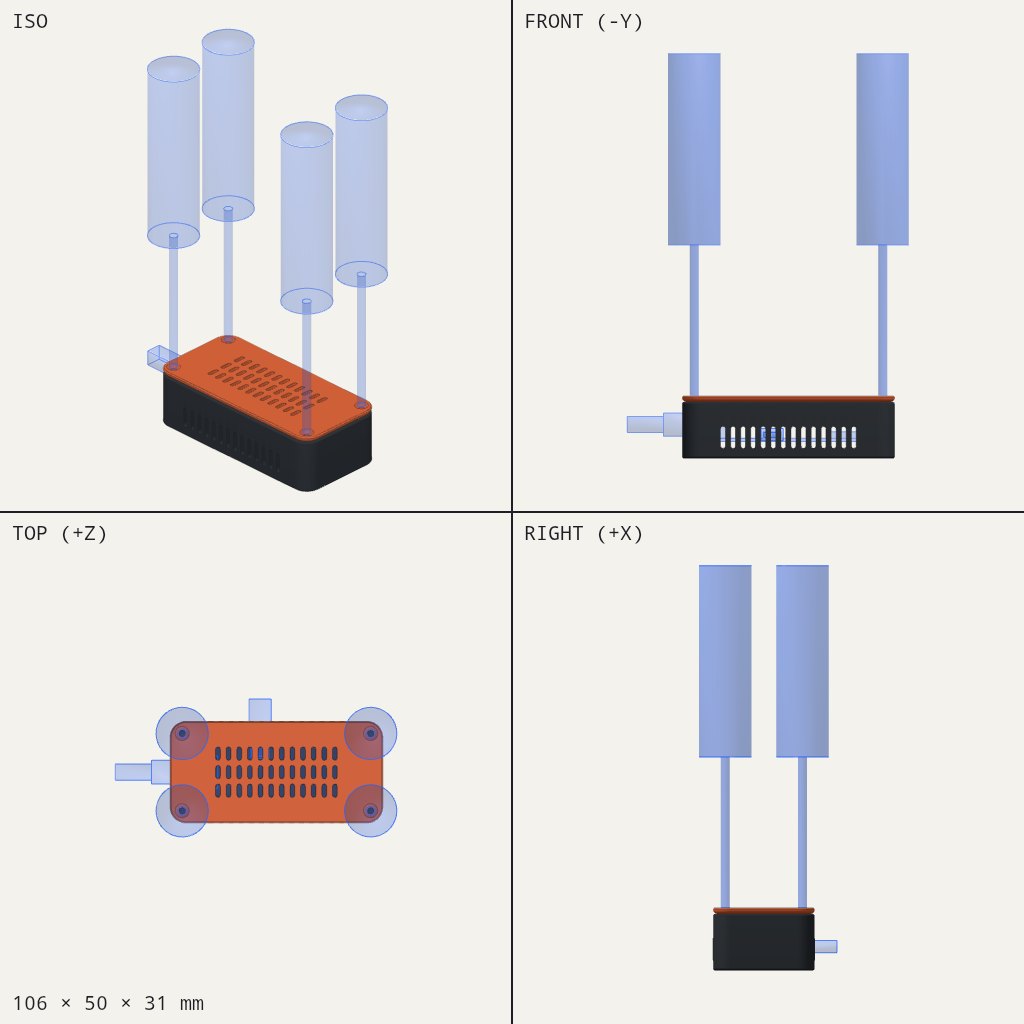

Low black box with an orange vented lid, port cut-outs on the sides and four corner screw posts
Loading the 3D view
Loading the 3D view
No adjustable sizes

Ask for the sizes you want to tweak, e.g. “make the width adjustable”.

Change it in the Studio

Parts

  • base · PLA · Upright, open side up

    Melt in 8 M3 heat-set inserts.

  • lid · PLA · Top face down

    Fixed with 4 countersunk M3 screws.

Print settings

Layer height
0.2 mm
Walls
3
Infill
15%
Supports
None

Hardware

  • 8 × M3 heat-set inserts · 4 under the board, 4 for the lid
  • 4 × M3 x 6 screws for the board
  • 4 × M3 countersunk screws for the lid (about 12 mm)

Assembly

  1. Melt the 8 inserts into the standoffs and corner columns.
  2. Screw the board onto the four standoffs.
  3. Plug in the cables (Ethernet end, USB-C side).
  4. Put the lid on and fasten the four corner screws.

Good to know

  • Board size, hole positions and the USB-C position/side are my estimates, not measured. Set them with the sliders on Adjust before printing.
  • The Use it plug-in animations show a small overlap with the stand-in board model; that is a modelling artifact of the ghost board, not the case.
  • Fits are untested; print the base first and check the board and plugs.
