Wheel quartering jig

Holds a pair of model railway wheels on their axle so the cranks sit exactly a quarter turn apart while you fix them. The wheelset drops into a block with a notch for each crank pin. Change the wheel diameter and the width over the wheel faces to match your own wheels.

1 part · 6 g · 31 × 30 × 24 mm

by Pennred

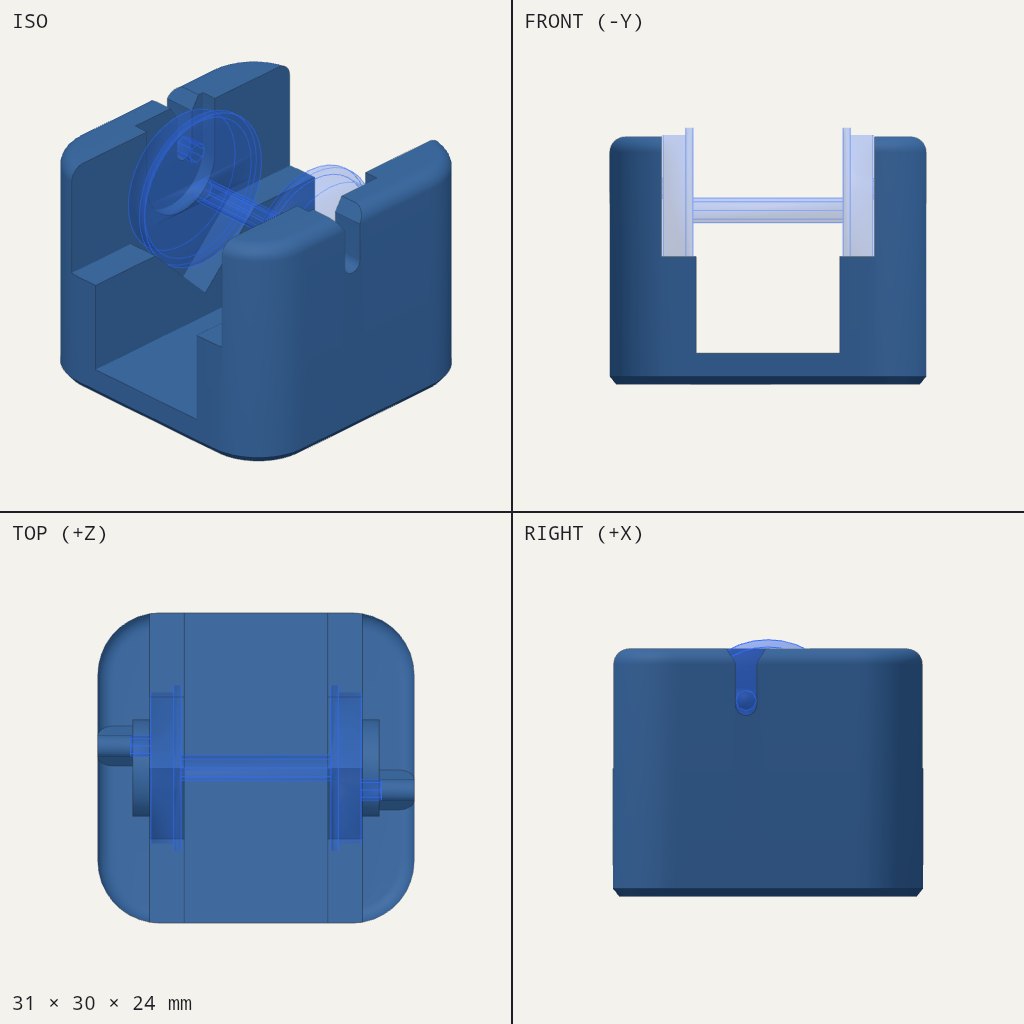

Small rounded block with a slot holding a pair of wheels on an axle, with a crank pin notch at the side
