Shadow clutch cover (shallow tray)

A shallow, flat-topped cover with an uneven outline and one round hole near the edge. It's a low cap that keeps the shape of the thing underneath in view. Change the cover depth and the hole size to fit what you're covering.

1 part · 32 g · 129 × 111 × 15 mm

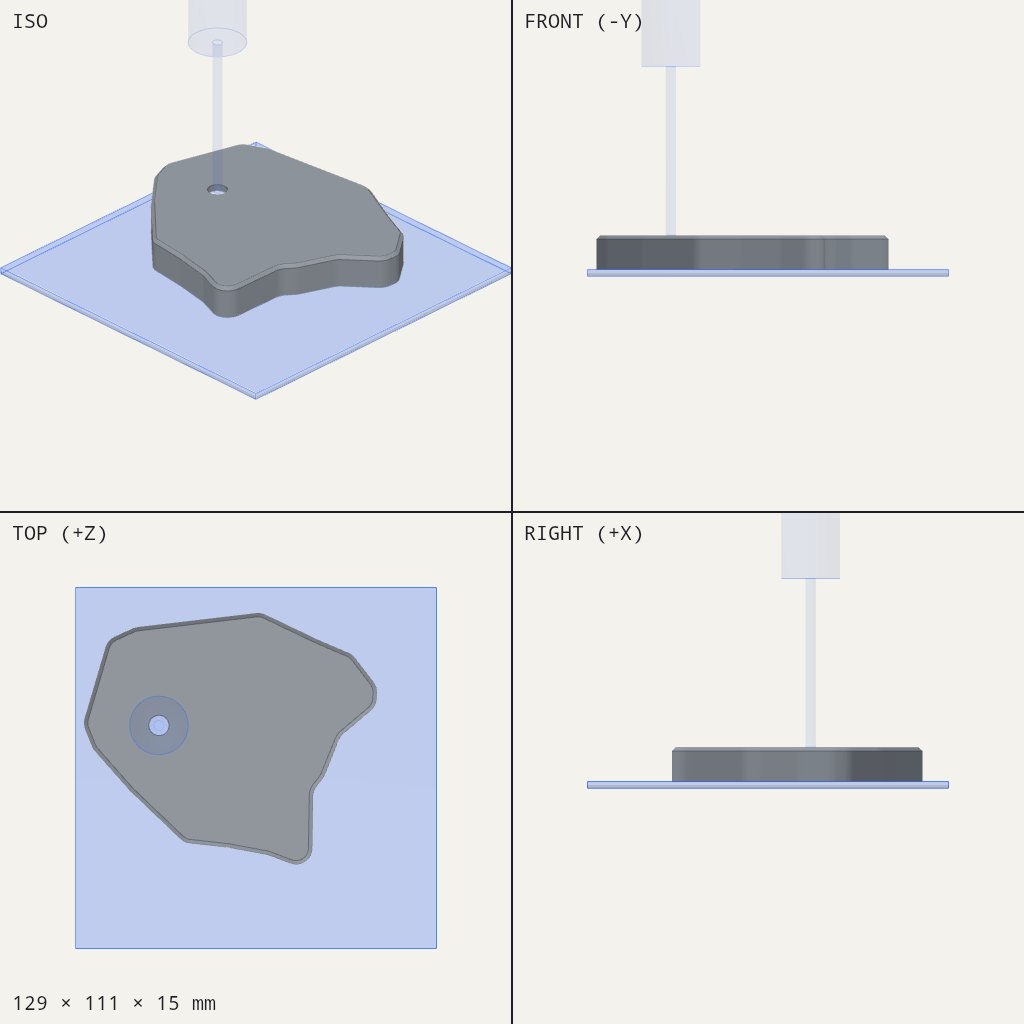

Flat, irregular-shaped shallow tray cover with one round hole near its edge
Loading the 3D view
Loading the 3D view
No adjustable sizes

Ask for the sizes you want to tweak, e.g. “make the width adjustable”.

Change it in the Studio

Parts

  • cover · PLA

    Print open side down.

Print settings

Layer height
0.2 mm
Walls
3
Infill
20%
Supports
Probably none; add them only if the flat ceiling sags.

Assembly

  1. Lower the cover over the slave cylinder with the hose through the notch.
  2. Fasten it with one M6 bolt and washer through the ear.

Good to know

  • All the sizes are guesses, so measure your slave cylinder and bolt position and set the sliders before printing.
  • The inside ceiling is flat, about 25 mm across, with chamfered edges. That is a bridge, so the slicer may add around 2 g of support there.
  • Fit is checked only as geometry, not on a real bike.
