Tiger-stripe nameplate – J Fortner

A nameplate for a door, desk or shelf edge, with tiger stripes and a red cross at each end. The name sits raised in white lettering across the middle, easy to read from across a room. Change the name size and stripe count to suit.

1 part · 31 g · 229 × 51 × 4 mm

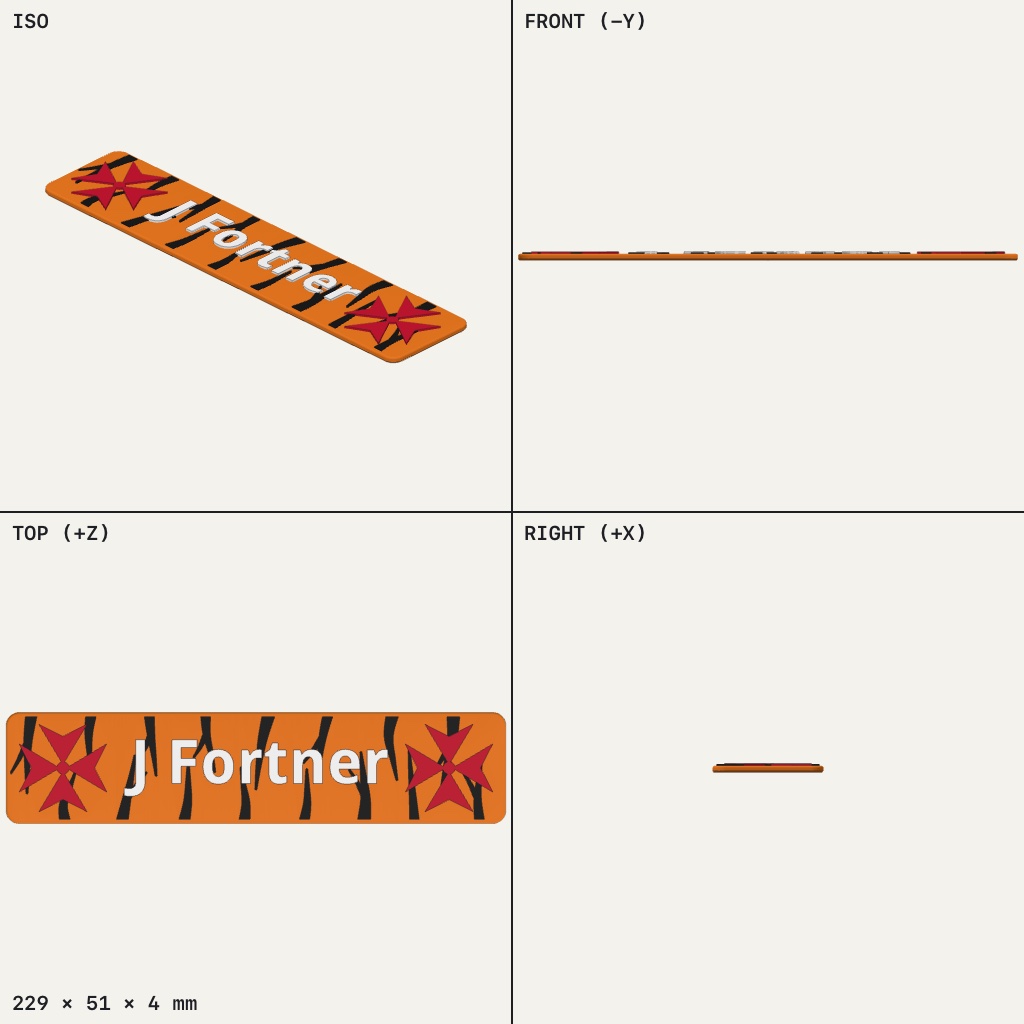

Long orange nameplate with black tiger stripes, raised white lettering and a red cross at each end
Loading the 3D view
Loading the 3D view
No adjustable sizes

Ask for the sizes you want to tweak, e.g. “make the width adjustable”.

Change it in the Studio

Parts

  • nameplate · PLA · Flat, face up, turned 45° on the diagonal to fit a 220 mm bed

    The stripes, text and crosses print inside this part as separate colour regions.

Print settings

Layer height
0.2 mm
Walls
3
Infill
15%
Supports
None
Notes
Slot 1 orange (plate), slot 2 black (stripes), slot 3 white (text), slot 4 red (crosses). Needs a prime tower and about 11 colour changes, roughly 6 g of purge. If you don't have a multi-colour printer, pause at z = 2.8 mm to swap filaments for each colour.

Good to know

  • The build report still lists a few thin-ledge warnings near the letters. They are the raised letters' own walls, not defects in the plate.
  • The 9-inch plate only fits your 220 mm bed turned 45°, so check the slicer keeps it that way.
  • I haven't test-printed the stripes and crosses. If the stripe tips look weak, raise the Stripe height slider on Adjust.
